Pneumatic Flanged Ball Valve 2'' 3'' DN50 DN80 with ANSI-150lb 316 Stainless Steel Construction
جزئیات محصول:
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|
|
اطلاعات تکمیلی |
|||
| شماره شماره: | VS-063DA | فرم اتصال: | فلنج |
|---|---|---|---|
| حالت رانندگی: | وابسته به پنوماتیک | فشار اسمی: | pn1.0-32.0mpa |
| کانال: | مستقیم از طریق نوع | ساختار: | دریچه توپ شناور |
| نوع: | دریچه توپ شناور | درجه حرارت: | دمای طبیعی |
| نوع 3 راه: | پورت | بعد فلنج پایان: | ASME B16.5 |
| معیار آزمون: | ASME B16.34 | مشخصات: | 1 اینچ 12 اینچ |
| ماده بدن: | 316 فولاد ضد زنگ | ماده توپ: | 316 فولاد ضد زنگ |
| ماده اساسی: | 316 فولاد ضد زنگ | ||
| برجسته کردن: | 2'' 3'' DN50 DN80 Flanged Ball Valve,ANSI-150lb Pneumatic Ball Valve,316 Stainless Steel Ball Valve,ANSI-150lb Pneumatic Ball Valve,316 Stainless Steel Ball Valve |
||
توضیحات محصول

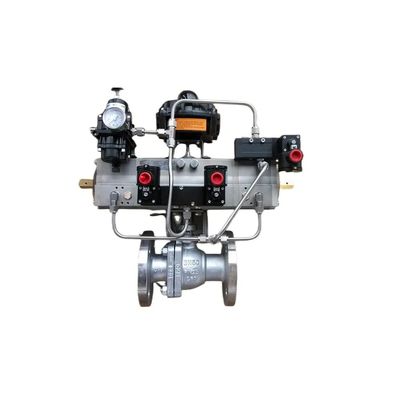

Pneumatic 2 Way/3 Way Ball Valve - ANSI 150# Flange End
DN50/DN80 | L-PORT/T-PORT | Direct Mount Type
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for demanding chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel construction (body, ball, and stem)
- Blow-out proof stem design
- RTFE ball seats for extended cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting capability
- Anti-static design for safety
Pneumatic Actuator Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion operation
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
Technical Specifications
| Operating Pressure | 80-120 PSI |
|---|---|
| Mounting | Direct mount with ISO5211 pad |
| Orientation | Can be mounted in any position |
| Testing Standard | API 598 |
| Temperature Range | Standard or extended with optional high temperature kit |
Note: Optional accessories including high temperature valve mounting kits for extended temperature range or wall mounting applications are available.
