جزئیات محصول:

پرداخت:

مقدار حداقل تعداد سفارش: 1
بهترین قیمت مخاطب

اطلاعات تکمیلی
شماره شماره: VS-063DA فرم اتصال: فلنج
ساختار: مهر و موم فرم مهر و موم: نیرویی مهر و موم شده
ساقه: عادی فشار: فشار متوسط (2.5MPa <Pn <6.4MPa)
دمای کار: دمای متوسط ​​(120 درجه سانتیگراد) ماده مهر و موم: مهر و موم شده نرم
بدنه: ورق فلز مشخصات اندازه: 2 اینچ 24 اینچ
فشار هوا محرک: 80-120 psi زندگی چرخه محرک: 1 میلیون چرخه
طراحی محرک: پیینین ریک امتیاز ضد آب: IP66 و IP68
استاندارد نصب: ISO5211
برجسته کردن:

Mid-Pressure Air Actuated Butterfly Valve,Medium Temperature Butterfly Valve,2 inch-24 inch Pneumatic Butterfly Valve

,

Medium Temperature Butterfly Valve

,

2 inch-24 inch Pneumatic Butterfly Valve

توضیحات محصول

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
  • Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
  • Extended lifespan with unique wave line seat and special disc shape design
  • Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
  • Increased flow capacity through unique profile disc and two-piece shaft design
  • Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Rack pinion design for reliable operation
  • Highly visible valve position indicator
  • Type IP66 & IP68 weatherproof rating
  • Anodized aluminum body with epoxy-polyester covers
  • Compatible with dry or lubricated pilot air
  • Namur & ISO mounting options
Product Images

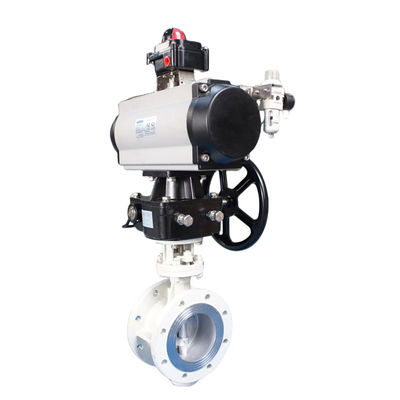

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 0

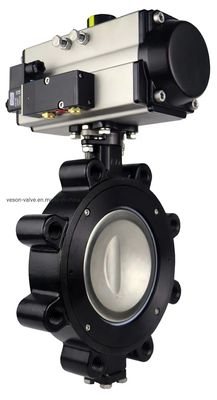

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 1

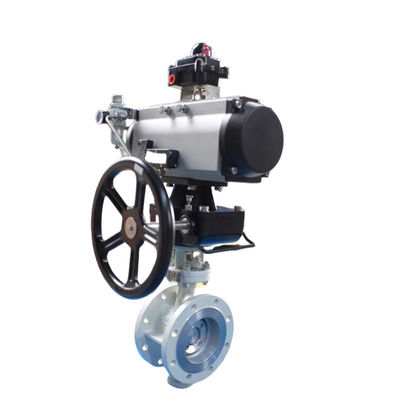

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 2
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 3

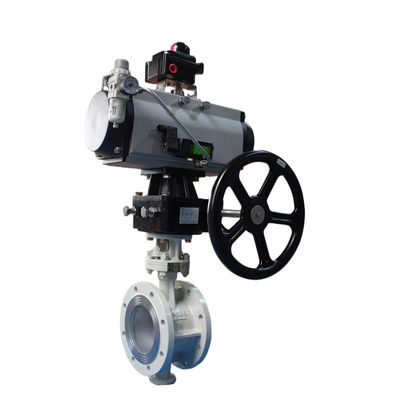

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 4

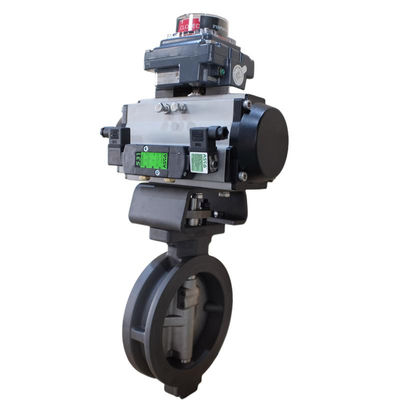

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 5
