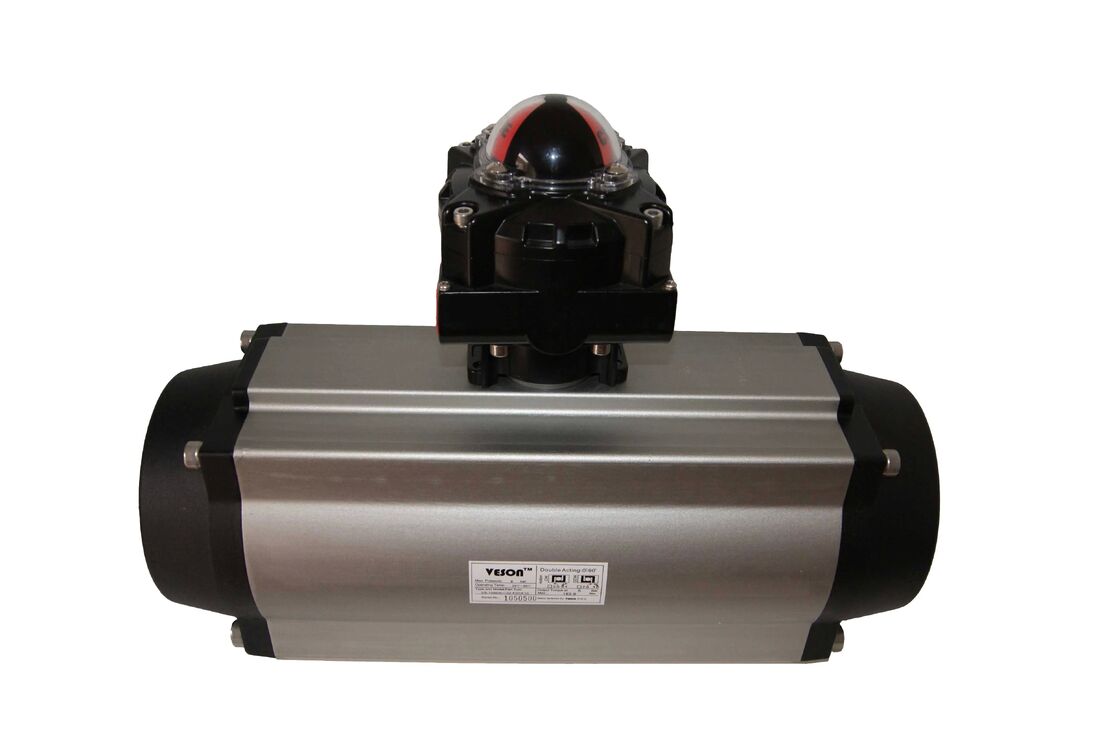

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
جزئیات محصول:
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|
|
اطلاعات تکمیلی |
|||
| شماره مدل: | VS-210 | قدرت: | پنوماتیک |
|---|---|---|---|
| استاندارد: | استاندارد | جهت فشار: | سیلندر دو کاره |
| نوع سیلندر دو اثره: | سیلندر دو میله ای | نوع سیلندر ویژه: | تعداد سیلندرها |
| نوع سیلندر ترکیبی: | سیلندر تحت فشار | استاندارد طراحی: | ISO5211 DIN3337 |
| بسته حمل و نقل: | بسته پرونده تخته سه لا | مشخصات: | 1 اینچ 12 اینچ |
| علامت تجاری: | Veson یا Cusomer "S | مبدا: | چین |
| کد Hs: | 84123900 | ظرفیت تولید: | 50000pc / y |
| برجسته کردن: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
توضیحات محصول
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
می خواهید اطلاعات بیشتری در مورد این محصول بدانید
