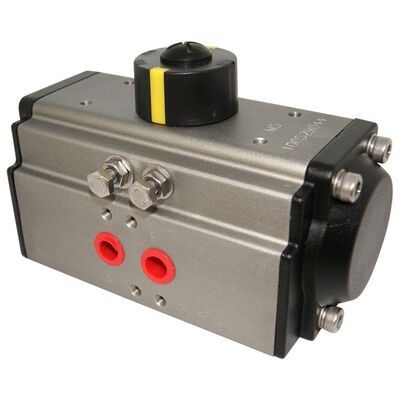

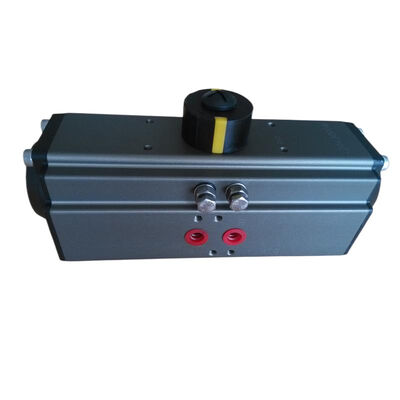

Rack Pinion Pneumatic Actuator with VDI/VDE3845 Standard Hard Anodized Treatment and Epoxy Coated for Industrial Usage
جزئیات محصول:
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|
|
اطلاعات تکمیلی |
|||
| شماره مدل: | VS-083 | کانال: | مستقیم از طریق نوع |
|---|---|---|---|
| ساختار: | پیستون | تایپ کنید: | رک و پین |
| استاندارد: | ISO5211 | برنامه: | مصارف صنعتی، مصارف صنعتی آب |
| بسته حمل و نقل: | بسته پرونده تخته سه لا | مشخصات: | VS/32DA -400DA. یا 52SR-400SR |
| علامت تجاری: | Veson یا Cusomer "S | مبدا: | چین |
| کد Hs: | 84123900 | ظرفیت تولید: | 50000pc / y |
| برجسته کردن: | VDI/VDE3845 pneumatic rack actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator |
||
توضیحات محصول
VS-075 (rack& pinion) have the following features.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
